MS Field
Mid/side metering plugin for macOS and Windows
See the fold to mono before you make it.
Price includes VAT. Licence key by email, straight after payment.
No iLok and no password. One online activation, then it runs offline. Full refund within 14 days, for any reason.
Nothing to A/B. MS Field measures, it doesn't process.

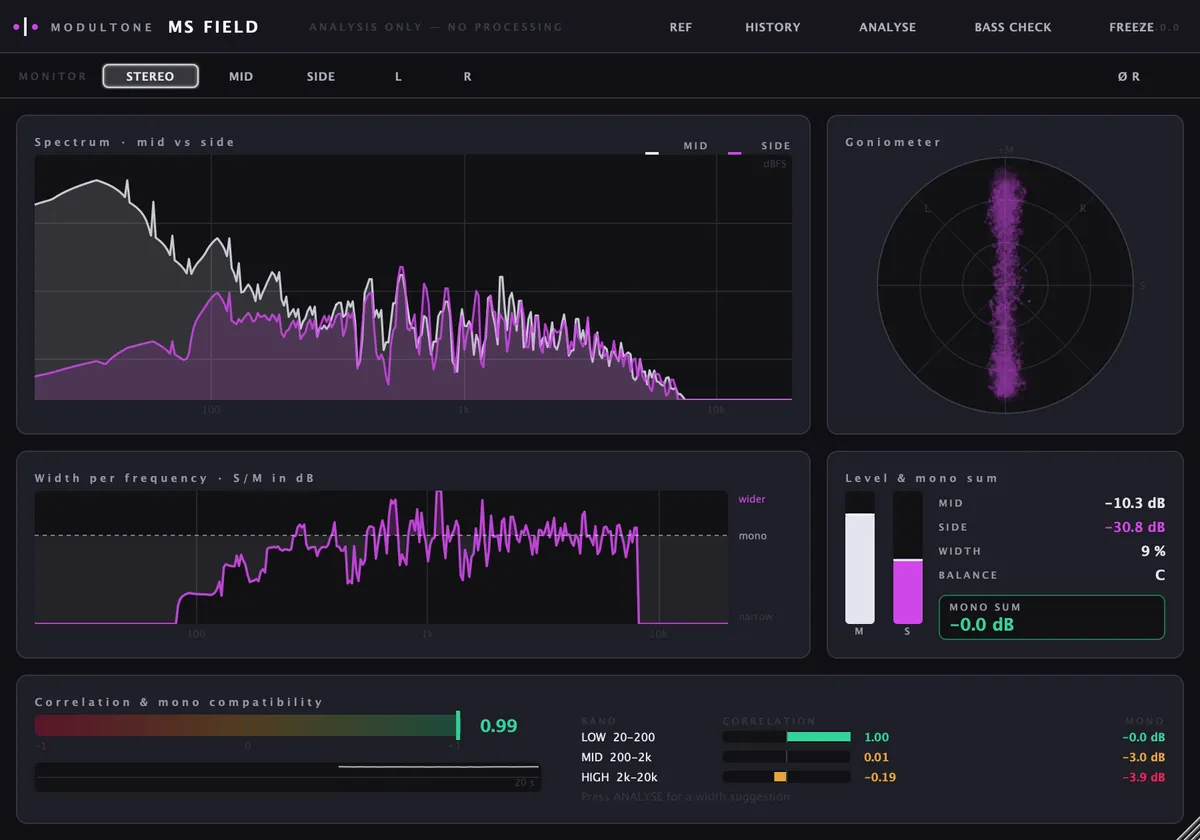

On the panel
- SpectrumMid and side on one graph, from the same frame as every readout on the panel.
- GoniometerDraws the stereo field. A vertical line is mono, and the further it spreads sideways, the more side signal there is.
- CorrelationThree bands, each with its correlation and the level a mono fold would cost.
- Bass CheckTen third-octave bands from 25 to 200 Hz. It names the worst one and suggests a crossover.
Every graph and number comes from the same 2048-sample frame, so a wide-looking curve can't sit next to a reading that says otherwise. Bass Check uses a frame four times longer. It names the frequency below 200 Hz that loses most in mono, and how many decibels a fold would give back. It reads the input and leaves the audio alone.
Views
Full range
20 Hz to 20 kHz, updated every frame: the spectrum, the three-band correlation and mono-loss, width and balance.
Bass Check
Trades update speed for resolution below 200 Hz. Ten third-octave rows instead of three wide bands, plus the worst offender and a mono-below recommendation with the dB it recovers.
What it does
- Mid/side spectrum, correlation and mono-loss computed from one shared frame, so the three can never disagree with each other
- Three-band readout (low, mid, high) shows correlation and how much level a mono fold would cost, colour-coded from safe to a fold that will lose it
- Width reads side level against mid as a percentage: 0 is mono, 100 is equal energy either side
- Balance meter shows the image sitting left or right, in dB, from the same sums the correlation is built on
All 8 features
- Bass Check takes a frame four times longer to resolve ten third-octave bands from 25 to 200 Hz
- Names the worst bass band by frequency and how much it loses on a mono fold, and recommends a crossover with the dB it would recover
- The frame length adapts to the host's sample rate, so the low band keeps the same resolution at 44.1 kHz and at 96 kHz
- Analysis runs off the audio thread. It reads the input and changes nothing in the signal path
Specs
- Formats
- VST3, AU
- Requirements
- macOS 11 or later (Apple Silicon & Intel), VST3 or AU host · Windows 10 or later (64-bit), VST3 host
How to use it
Changelog
1.1.09 Oct 2026
- Added Analyse tips in the correlation panel
- Added a bass solo below 200 Hz to Bass Check
- Changed the goniometer to a dot cloud with a degree scale
- Changed: the goniometer follows MID, SIDE, L and R
- Fixed the goniometer going blank after very loud input
- Fixed left-channel signal drawing on the R side
- Fixed the version number hiding under FREEZE
- Added update notifications with a one-click Update button
- Added a gear menu to turn update notifications off
- Added a daily check for withdrawn licences (offline keeps working)
- Changed: Mac activation no longer sends your DAW, macOS version or language
- Fixed: the Mac installer always installs to the plug-in folders
1.0.030 Aug 2026
- First release.
